Wheels - Drive & Hub Mount (14" x 3") (See Motors For 12" Drive Wheel)

Print this page

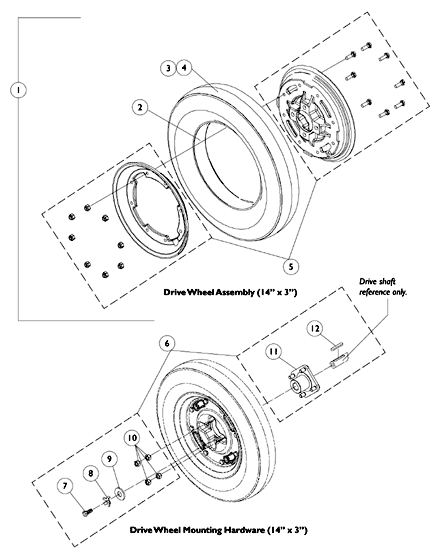

Drive Wheel (14 x 3

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1090649	NLA - Pneumatic Wheel Drive Assembly (14" x 3")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1090650	NLA - Drive Wheel Assembly w/ Flat Free Insert, Grey Tire/Black Rim (14 x 3")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1101754	Tire w/ Foam Fill Insert, Grey (14" x 3")	1	1	$161.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1039652	Tire, Pneumatic, Grey (14" x 3")	1	1	$110.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1039651	Tube, Inner, Black (14 x 3")	1	1	$35.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1090651	NLA - Kit, 8" Rim w/ Hardware (14" x 3" Wheel)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1090648	NLA - Hardware, Drive Wheel Mounting w/ Instruction Sheet (14 x 3")	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	7930322	NLA - Package, Screw, Hex Head (M8 x 1.25 x 20mm)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1064179	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	2	2	$28.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1079247	Washer, Flat (21/64 x 53/64 x 7/64")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1024444	Locknut (5/16-24)	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1086681	NLA - Hub, Wheel (14" x 3")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1023264	Key (6mm x 6mm x 40mm)	1	1	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Hardware consists of: 8 ea. Screw, Hex Head Cap (1/4-20 x 3/4"); 8 ea. Locknut, High Profile (1/4-20).
B	Includes items 7-12 and instruction sheet.

Catalog Literature

Parts Books for Storm Series® Ranger II™ MWD and Chairs for WSBT (Before 3/1/2000)
