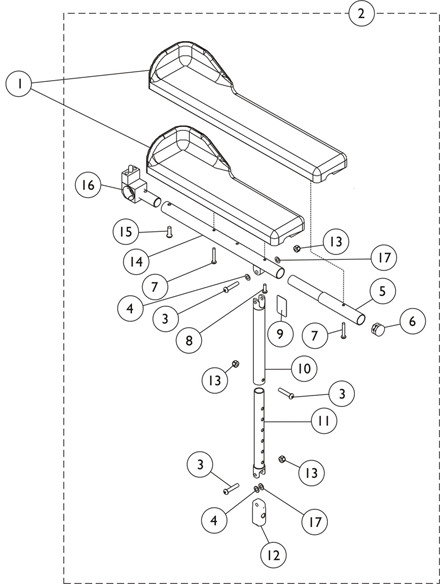

Arms - w/o Mounting Hardware - Recline & Tilt/Recline
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1082910 | Pad, Arm w/ Elbow Stop, Desk Length, Urethane, Black - Right (13" L x 3" W) | 1 | 1 |
$32.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 1 | 1082911 | Pad, Arm w/ Elbow Stop, Desk Length, Urethane, Black - Left (13" L x 3" W) | 1 | 1 |
$32.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 1 | 1090190 | Kit, Arm Pad w/ Screws and Elbow Stop, Desk Length, Urethane, Black (13" L x 3" W) (Pair) | 2 | 1 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 1 | 1082912 | Pad, Arm w/ Elbow Stop, Full Length, Urethane, Black - Right (17" L x 3" W) | 1 | 1 |
$32.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 1 | 1082913 | Pad, Arm w/ Elbow Stop, Full Length, Urethane, Black - Left (17" L x 3" W) | 1 | 1 |
$32.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 1 | 1090191 | Kit, Arm Pad w/ Screws and Elbow Stop, Full Length, Urethane, Black (17" L x 3" W) (Pair) | 2 | 1 |
$48.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 1086992 | Arm Assembly w/o Arm Pad, Desk Length, Black - Right | 1 | 1 |
$289.00 |
A ,F |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1086993 | Arm Assembly w/o Arm Pad, Desk Length, Black - Left | 1 | 1 |
$289.00 |
A ,F |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1087012 | Arm Assembly w/o Arm Pad, Full Length, Black - Right | 1 | 1 |
$323.00 |
B ,F |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1087013 | Arm Assembly w/o Arm Pad, Full Length, Black - Left | 1 | 1 |
$323.00 |
B ,F |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 1008432 | Screw, Socket Button Head (1/4-20 x 1-1/4") | 1 | 3 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1026103 | Washer, Nylon (1/4 x 1/2 x 1/32") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 0028202 | Tube, Extension, Full Length | 1 | 1 |
$26.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1027095 | Plug Button, Black (7/8") | 1 | 1 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1107155 | Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1028755 | Screw, Phillips Pan Head (#10-32 x 5/8") | 1 | 1 |
$10.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
| 8 | 1107155 | Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") | 1 | 1 |
$8.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
| 9 | 1079203 | Decal, Warning Pinch Point | 1 | 1 |
$7.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1115392 | Tube, Arm, Support, Black | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 11 | 1115393 | NLA - Tube, Slide, Adjustable, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 1082842 | Plug, Arm, Black | 1 | 1 |
$31.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 7930333 | Locknut (1/4-20) | 25 | 3 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 1082927 | Tube, Arm, Black | 1 | 1 |
$53.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 15 | 1091870 | Screw, Socket Button Head w/ Patch (1/4-20 x 3/4") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 16 | 1095437 | Arm Pivot Assembly | 1 | 1 |
$124.00 |
G |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1165484 | NLA - Washer, Nylon (1/4 x 1/2 x 1/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 1119268 | NLA - Kit, Slide Tube w/ Arm Support (Pair) | 2 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes Items 3,4,6, and 9-17. |
| B | Includes Items 3-6 and 8-17. |
| C | Used for full length arms only |
| D | Used for desk length arms only |
| E | Not Shown. Assembly includes 2 ea. of item numbers 9, 10 and 11 |
| F | When placing an order for item 2, you must specify as a note "For Tarsys 2GTR seating" or "For Formula TRE seating". |
| G | The Arm Pivot Assembly Pin faces down for Tarsys 2GTR and faces up for the Formula TRE powered seating |
