EQUIPMENT US Site

1

1118432

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Nut, Hex with Nylon Cap (1/4-20)	1	2
3	Spacer, Coved (1/4 x 11/16 x 1/2")	1	2
4	NLA - Bracket, Basket Mounting, Black (Invacare 300 Scooter)	1	1
5	NLA - Pad, Foam	1	1
6	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
2	Nut, Hex with Nylon Cap (1/4-20)	1	2
3	Spacer, Coved (1/4 x 11/16 x 1/2")	1	2
4	NLA - Bracket, Basket Mounting, Black (Invacare 300 Scooter)	1	1
5	NLA - Pad, Foam	1	1
6	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2

NLA - Kit, Basket Mounting Hardware

1

N/A

A

Create/add to Wishlist

7

1125364

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	NLA - Pad, Foam	1	1
9	NLA - Bracket, Basket Mounting, Black (Invacare 400 Scooter)	1	1
10	Locknut (1/4-20)	1	2
11	Washer (1/4 x 1/2 x 1/16")	1	2
12	Screw, Hex Head (1/4-20 x 5/8")	1	2

NLA - Kit, Basket Mounting Hardware (Invacare 400 Scooter)

1

N/A

B

Create/add to Wishlist

13

1120484

Basket, Front

1

C

Create/add to Wishlist

14

1125359

NLA - Tiller Shroud and Headlight Assembly - Candy Red Pearl

1

N/A

D

Create/add to Wishlist

14

1125360

NLA - Tiller Shroud and Headlight Assembly - Deep Blue Pearl

1

N/A

D

Create/add to Wishlist

15

1119187

NLA - Headlight

1

N/A

Create/add to Wishlist

16

1028769

Locknut (5/16-18)

1

$9.00

Create/add to Wishlist

17

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

$7.20

Create/add to Wishlist

18

1091870

Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")

1

2

$8.00

Create/add to Wishlist

19

1125357

NLA - Bracket, Light Mounting, Black

1

N/A

Create/add to Wishlist

20

1070412

NLA - Screw, Hex Head (5/16-18 x 2-1/4")

1

N/A

Create/add to Wishlist

21

1124888

NLA - Shroud, Front Tiller - Candy Red Pearl

1

N/A

Create/add to Wishlist

21

1124889

NLA - Shroud, Front Tiller - Deep Blue Pearl

1

N/A

Create/add to Wishlist

22

1037610

Screw, Hex Head (1/4-20 x 1-5/8")

1

2

$8.00

Create/add to Wishlist

23

1125358

NLA - Bracket, Tiller Shroud Mounting with Inserts, Black

1

N/A

Create/add to Wishlist

24

1026099

Spacer, Coved (1/4 x 11/16 x 1/2")

1

2

$8.00

Create/add to Wishlist

25

1025195

Locknut (1/4-20)

1

2

$9.00

Create/add to Wishlist

7930323

NLA - Package, Locknut (1/4-20)

25

1

N/A

Create/add to Wishlist

26

1114279

NLA - Shroud, Tiller, Black - Rear

1

N/A

Create/add to Wishlist

27

1114276

Screw, Phillips Pan Head (#8-16 x 5/8")

1

4

$10.00

Note Code	Definition
A	Includes: Items 2-6.
B	Includes: Items 8-12.
C	The Basket is the same for the HMV300 and the HMV 400.
D	Includes: Items 15-27.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

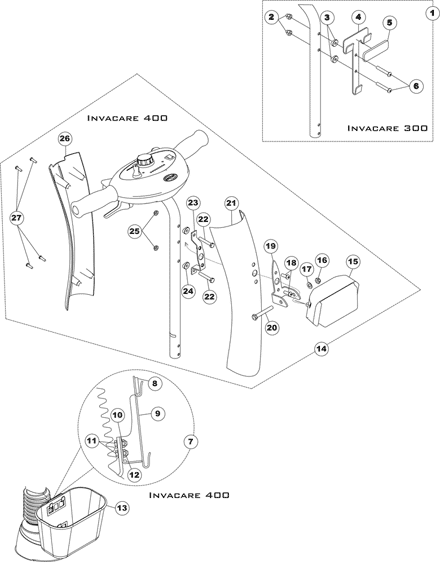

Basket - Headlight and Tiller Shroud - Invacare 400 Scooter
