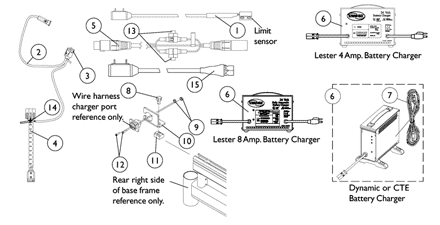

Battery Charger - Cables & Wire Harness

Assembly Part Notes

Note Code Definition
A Not Shown
B Wiring harness is used when a MKIV Quad Pulse controller, or MKIV RII for Weight Shifting Tilt controller are used.
C Sensor cable is used when a manual recliner or high back captain seat is ordered
D On 7/18/01 Lest 8 amp. battery charger was reinstated.
E 250-S Models Only
F Before 4/1/03
G After 3/31/03
H CTE 8 Amp. charger replaced the obsoleted 4 Amp. charger as of 4/1/04.
I CTE charger introduced 4/1/04. Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. For wet cell batteries refer to the 8 amp. Lester charger.
I1 CTE charger looks exactly the same as Dynamic’s charger except for the company name that is silk screened on the narrow side panel, where the charger plug is (hard wired) attached. Serial number starts with 04A00000001.
J No longer available as a service part. Please use 1121086 as its replacement.
K Use Battery Charger part number 1123249 as a replacement.
