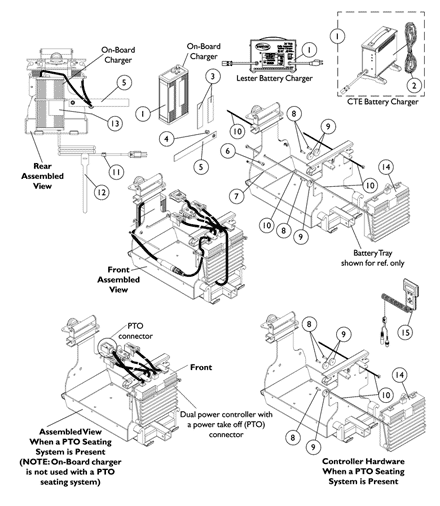

Electronics - MKIV Controller - Programmer & Battery Charger (Before 6/27/03)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1106483 | Battery Charger, 3 Amp, 115vac, On Board, Dual Mode, Round Plug | 1 | 1 |
$389.00 |
G |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 1053161 | NLA - Charger, Battery, 8 Amp, 115vac, Off Board Dual Mode Round Plug, Lester | 1 | 1 | N/A | H ,L |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 1123249 | Charger, Battery, 8 Amp. 115vac (Off Board) Single Mode Round Plug w/ AC Power Line Cord | 1 | 1 |
$351.00 |
I |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 1123249E | NLA - WARR RPLMT - Charger, Battery, 8 Amp, 115VAC (Off Board) Single Mode Round Plug w/ AC Power Line Cord | 1 | 1 | N/A | I |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1089627 | NLA - Cord, AC Power, 115VAC, 2 Prong Off-Board (11'' 6" L) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 1121086 | Cord, AC Power, 115VAC, 3 Prong On-Board (6'' 6-1/2" L) | 1 | 1 |
$19.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 1095507 | NLA - Fastener, Hook and Loop Adhesive (2" W x 12" L) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1044214 | Nut, Hex with Nylon Cap (1/4-20) | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1112746 | NLA - Strap, Cable | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
| 6 | 1007269 | Screw, Socket Button Head (1/4-20 x 5/8") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1095503 | NLA - Package, Tie Wrap (5-5/8" L) | 10 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1109470 | NLA - Screw, Phillips Pan Head Tap (#8-32 x 5/8") | 1 | 3 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1109471 | NLA - Bumper with Washer | 1 | 3 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1095502 | NLA - Package, Tie Wrap (11-1/2" L) | 10 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 11 | 1112747 | NLA - Bushing, Relief Strain | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 1112745 | NLA - Tie Wrap, Hook and Loop (8" L) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 1086270 | NLA - Hook Fastener with Adhesive Back (2" W x 9-1/2" L) | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
| 14 | 1106820 | NLA - Controller, MKIV RII | 1 | 1 | N/A | J |
Create/add to WishlistCreate/add to Wishlist |
| 14 | 1106820E | NLA - WARR RPLMT - Controller, MKIV RII | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 1095262 | NLA - Controller, MKIV RII, Dual Power | 1 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
| 15 | 1109091 | NLA - Programmer, Remote | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 1064404 | NLA - Virtual Service Modem Kit | 1 | 1 | N/A | B ,C |
Create/add to WishlistCreate/add to Wishlist |
|
| 1091631 | NLA - Virtual Service Software Kit | 1 | 1 | N/A | B ,D |
Create/add to WishlistCreate/add to Wishlist |
|
| 1103051 | NLA - MKIV One 2 One Software Kit | 1 | 1 | N/A | B ,C |
Create/add to WishlistCreate/add to Wishlist |
|
| 1095204 | NLA - Cable, Virtual Service, Charger/Modem | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
|
| 1091980 | NLA - Disk, 3.5 H.D. Floppy with V.S. Software | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
|
| 1091637 | NLA - Adaptor, Null Modem | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
|
| 1091636 | NLA - Service Manual - V.S. Software Kit | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | When item 5 cable strap is ordered for chairs manufactured before 5/16/02 items 11, 12 and 13 are required as well. |
| B | Not Shown |
| C | Part number 1095204 is available for individual sale. |
| D | Part numbers 1095204, 1091980, 1091637, and 1091636 are available for individual sale. |
| E | Cut to length of a 2" square. |
| F | Dual power MKIV RII controller used when a Power Tilt Only (PTO) seating system is present |
| G | The 3 Amp. On-Board charger is not used when a Power Tilt Only (PTO) seating system is present |
| H | The 8 Amp. Lester charger was standard on-chair when a Power Tilt Only (PTO) seating system is ordered |
| I | CTE charger introduced 4/1/04. Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. Serial number starts with 04A00000001. For wet cell batteries refer to the Lester 8 Amp. charger. |
| J | Part # No Longer Available. See part #1106820E as a replacement. |
| K | No longer available as a service part. Please use 1121086 as its replacement. |
| L | Use Battery Charger part number 1123249 as a replacement. |
