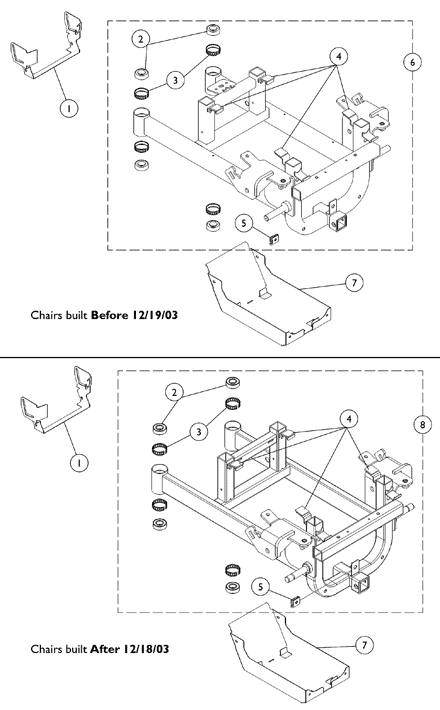

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1110721	NLA - Bracket, Charger Mounting, Black	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	40117X006	Bearing (5/8")	1	4	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1110717	Ring, Tolerance	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1070504	NLA - Fastener, Hook with Adhesive Back (1" W x 1" L)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1013497	NLA - Fastener, Turn, Clip-On (1/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1118462	NLA - Base Frame Assembly, M91-M	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1110701	NLA - Tray, Battery	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1123110	NLA - Base Frame Assembly - M91-M	1	1	N/A	C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Note Code	Definition
A	M91-M Base Frames do not have the Battery Tray or Charger Bracket welded to the base frame due to MedBloc, Inc. power- positioning systems design. Per MedBloc, Inc., when these items are required, they will provide their own mounting hardware.
B	Frame is NLA on chairs built Before 12/19/03. Must order new frame (1123110), rear shroud (see shroud category), battery charger (1123102), and AC charger cord (1121086).
C	Chairs built After 12/18/03. Includes Frame and items 2-5.
D	Due to design change, Frames ordered for chairs built Before 4/1/04 require screws instead of a strap to attach the Battery Charger. See battery charger category.
