Battery Chargers - Straps - Hardware (Before 12/19/03)

Print this page

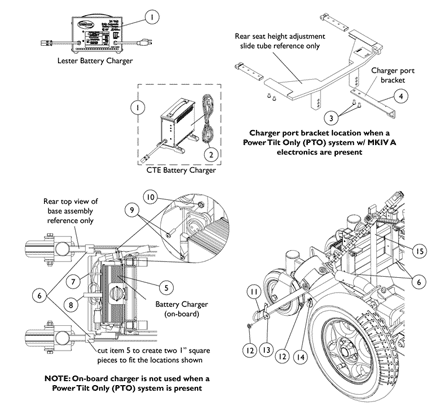

Battery Chargers, Straps and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1053161	NLA - Charger, Battery, 8 Amp, 115vac, Off Board Dual Mode Round Plug, Lester	1	1	N/A	A ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1123249	Charger, Battery, 8 Amp. 115vac (Off Board) Single Mode Round Plug w/ AC Power Line Cord	1	1	$351.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1123249E	NLA - WARR RPLMT - Charger, Battery, 8 Amp, 115VAC (Off Board) Single Mode Round Plug w/ AC Power Line Cord	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1089627	NLA - Cord, AC Power, 115VAC, 2 Prong Off-Board (11'' 6" L)	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1121086	Cord, AC Power, 115VAC, 3 Prong On-Board (6'' 6-1/2" L)	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1006773	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1119265	NLA - Bracket, Charger Connector, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1110636	NLA - Charger, Battery, Dual Mode, Round Plug, 5 Amp, On-Board	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1070509	NLA - Fastener, Loop with Adhesive Back (1" W x 2" L)	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1095502	NLA - Package, Tie Wrap (11-1/2" L)	10	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1112745	NLA - Tie Wrap, Hook and Loop (8" L)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1021742	Screw, Phillips Pan Head (#4-40 x 1/2")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	P0870X000	Nut, Hex Keps (#4-40)	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1112569	NLA - Strap, Charger	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1114308	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1113441	NLA - Tab, Charger Strap	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1110638	NLA - Clamp, Cable (1/2 x 3/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1080872	NLA - Strap and Buckle Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	The 8 Amp. Lester charger was standard on-chair when a Power Tilt Only (PTO) seating system is ordered
B	Used on all chairs except those with a Power Tilt Only (PTO) seating system.
C	CTE charger introduced 4/1/04. Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. Serial number starts with 04A00000001. For wet cell batteries refer to the Lester 8 Amp. charger.
D	No longer available as a service part. Please use 1121086 as its replacement.
E	Use Battery Charger part number 1123249 as a replacement.

Catalog Literature

Parts Books for Pronto® M91™ with SureStep® (Non-VA Chairs)
