Electronics - Controller, Harness, Cables, Programmer & Hardware - MKIV Quad Pulse

Print this page

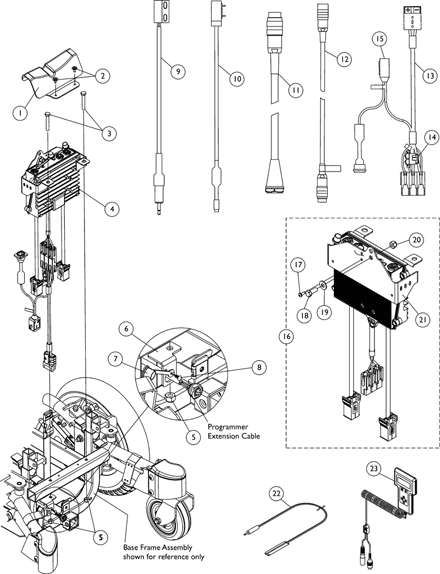

Controller, Cables and Hardware - MKIV Quad Pulse

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1116608

NLA - Shroud, MKIV Controller

N/A

Create/add to Wishlist

1114308

Screw, Phillips Pan Head Tap (#10-32 x 1/2")

$10.00

Create/add to Wishlist

1042484

NLA - Screw, Hex Head (5/16-18 x 2")

N/A

Create/add to Wishlist

1117042

Controller, MKIV Quad Pulse

Create/add to Wishlist

1026158

Locknut (5/16-18)

$9.20

Create/add to Wishlist

1116430

NLA - Bracket, Port, Black

N/A

Create/add to Wishlist

1037373

NLA - Cover, Splash

N/A

Create/add to Wishlist

1040226

NLA - Rivet, Nylon

N/A

Create/add to Wishlist

1074983

NLA - Cable, Limit Switch Sensor

N/A

Create/add to Wishlist

1094872

Cable Option with Phono Jack

Create/add to Wishlist

1092912

NLA - Programmer Extension Cable Assembly (18" Long)

N/A

Create/add to Wishlist

1116613

NLA - Cable, Joystick Jumper

N/A

Create/add to Wishlist

1116609

NLA - Harness, Wire, MKIV Quad Pulse, M91

N/A

Create/add to Wishlist

1101099

NLA - Fuse, Buss ATC-20 (20 AMP)

N/A

Create/add to Wishlist

1090117

NLA - Fuse - Buss Mini ATM-15 (15 AMP)

N/A

Create/add to Wishlist

1112783

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	NLA - Screw (#8-32 x 1/2")	1	1
18	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	1
19	Washer, Steel (5/16 x 3/4 x 1/16")	1	1
20	Locknut (5/16-18)	1	1
21	NLA - Bracket, Controller Mounting, Black	1	1
	Tie Wrap (11-1/2" L)	1	1
	NLA - Screw (#8-32 x 1/2")	1	1
	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	1
	Washer, Steel (5/16 x 3/4 x 1/16")	1	1
	Locknut (5/16-18)	1	1
2	NLA - Bracket, Controller Mounting, Black	1	1
	Tie Wrap (11-1/2" L)	1	1
	NLA - Screw (#8-32 x 1/2")	1	1
	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	1
	Washer, Steel (5/16 x 3/4 x 1/16")	1	1
	Locknut (5/16-18)	1	1
10	NLA - Bracket, Controller Mounting, Black	1	1
	Tie Wrap (11-1/2" L)	1	1
8	NLA - Screw (#8-32 x 1/2")	1	1
9	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	1
10	Washer, Steel (5/16 x 3/4 x 1/16")	1	1
11	Locknut (5/16-18)	1	1
12	NLA - Bracket, Controller Mounting, Black	1	1
13	Tie Wrap (11-1/2" L)	1	1
	NLA - Screw (#8-32 x 1/2")	1	1
	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	1
	Washer, Steel (5/16 x 3/4 x 1/16")	1	1
	Locknut (5/16-18)	1	1
8	NLA - Bracket, Controller Mounting, Black	1	1
	Tie Wrap (11-1/2" L)	1	1

NLA - Bracket with Hardware, Controller, M91/M94

N/A

A ,H

Create/add to Wishlist

1020818

Switch, Red Flex Ribbon (Tape) Reset

$177.00

Create/add to Wishlist

1123276

Kit, Switch, Black Egg Reset w/ Hook/Loop Adhesive Back Fastener & Attaching Screws (EGSBLK)

$96.00

Create/add to Wishlist

1109091

NLA - Programmer, Remote

N/A

Create/add to Wishlist

1064404

NLA - Virtual Service Modem Kit

N/A

B ,C

Create/add to Wishlist

1091631

NLA - Virtual Service Software Kit

N/A

B ,D

Create/add to Wishlist

1103051

NLA - MKIV One 2 One Software Kit

N/A

B ,C

Create/add to Wishlist

1095204

NLA - Cable, Virtual Service, Charger/Modem

N/A

Create/add to Wishlist

1091980

NLA - Disk, 3.5 H.D. Floppy with V.S. Software

N/A

Create/add to Wishlist

1091637

NLA - Adaptor, Null Modem

N/A

Create/add to Wishlist

1091636

NLA - Service Manual - V.S. Software Kit

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 17-21
B	Not Shown
C	Part number 1095204 is not available for individual sale
D	Part numbers 1095204, 1091980, 1091637 and 1091636 are available for individual sale
E	Joystick jumper cable is not used when a Power Tilt Only (PTO) seating system is present
F	Before 5/24/04
G	Not Shown. After 5/23/04 the Egg Reset Switch replaced the Red Flex Ribbon (Tape) Reset Switch
H	Part number 1110665 item #21 is no longer available for individual sale. Order item #16 as a replacement. Tie Wrap (not shown) is used for other Controller applications.

Catalog Literature

Parts Books for Pronto® M91™ with SureStep® (Non-VA Chairs)
