Casters & Forks

Print this page

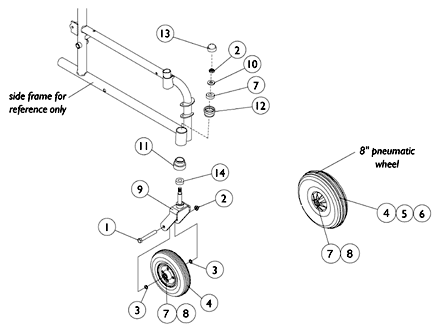

Casters and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	57667X007	NLA - Screw, Hex Head (7/16-20 x 3-1/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	7930352	NLA Locknut (7/16-20)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1016032	Washer, Steel (15/32 x 5/8 x 3/64")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1070811	Wheel Assembly, Semi-Pneumatic, Urethane, Light Grey (8" x 1-3/4")	1	1	$67.00	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1071666	Wheel Assembly, Semi-Pneumatic, Urethane, Light Grey (8" x 1-3/4") (Pair)	2	1	$163.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1002002	Wheel Assembly w/ Bearings, Pneumatic (8" x 2")	1	1	$122.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	40176X034	Tire, Pneumatic (8" x 2")	1	1	$52.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1034942	Tube, Pneumatic Inner (8 x 2")	1	1	$15.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1006049	Bearing (7/16")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1020592	Spacer, Bearing (7/16 x 5/8 x 1-3/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881079862	NLA - Fork and Stem, Color (6")	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	40014X044	NLA - Washer, Nylon (7/16 x 1 x 1/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1031829	NLA - Sleeve, Lower Bearing	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1028257	NLA - Sleeve, Bearing, Upper	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1001843	Cap, Head Tube, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1131189	Package, Head Tube Cap	10	1	$36.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	40117X006	Bearing (5/8")	1	1	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify frame color 24P when ordering from Frame Finishes, Touch-Up Paints and Upholstery Color page..
B	Chairs manufactured before 6/9/97 order in pairs (#1071666).
C	Forks must be ordered in pairs for chairs manufactured before 10/5/98.
D	Includes items 7 and 8

Catalog Literature

Parts Books for P7E™
