Van Seat Frame & Actuator Hardware

Print this page

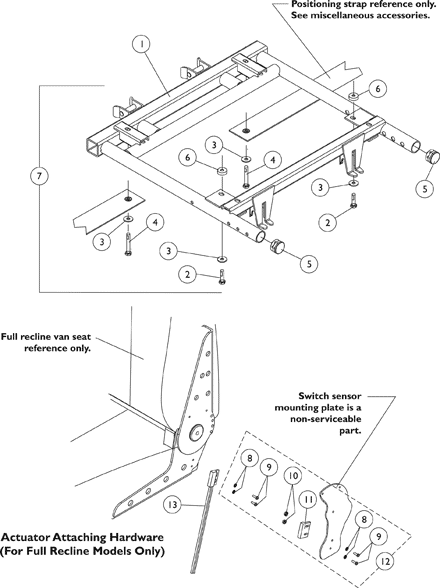

Van Seat Frame and Actuator Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1123423	NLA - Frame, Van Seat, Black (16" W)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1115343	Frame, Van Seat, Black (18" W)	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1115344	Frame, Van Seat, Black (20" W)	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1115345	Frame, Van Seat, Black (22" W)	1	1	$349.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1088897	NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1026900	Washer (1/4 x 23/32 x 1/16")	1	2	$1.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1052957	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1029501	Plug Button, Black (1")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1108410	Spacer (1/4 x 5/8 x 1/4")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1116421	Hardware, Van Seat Mounting	1	1	$35.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1008525	NLA - Washer, Internal Tooth Lock (#4-40)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	7930339	NLA - Package, Screw, Phillips Pan Head (#4-40 x 3/8")	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	P0870X000	Nut, Hex Keps (#4-40)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1024001	Sensor, Actuator Switch	1	1	$21.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1107242	NLA - Hardware, Actuator Switch Sensor Mounting	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1074983	NLA - Cable, Limit Switch Sensor	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-6
B	Includes items 8-11
C	NOTE: Seat Release Hardware is not included with a Van Seat Frame. See page titled "Seat Release Hardware".

Catalog Literature

Parts Books for Pronto® M91™ with SureStep® (Non-VA Chairs)
