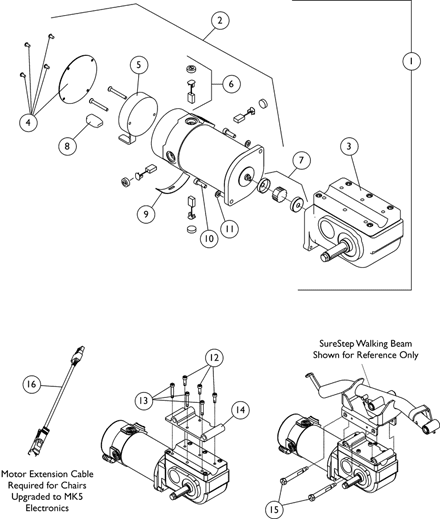

Not Shown, covers the motor lead wire between the connector and motor
D
Required for chairs upgraded to MK5 electronics.
E
Chairs built Before 9/3/04
F
Chairs built After 9/2/04
G
When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 10) must be ordered. Invacare Corp. utilizes alternate suppliers for this part number.
H
As of 5/15/06, harness part no. 1143143 replaced part nos. 1116389 & 1116390. The new harness is not Right/Left dependent and can be used for either side.
I
As of May 2008, the Metal Motor End Cap will be replaced with a Composite Motor End Cap. The change does not affect form, fit, function or aesthetics.
J
Kit includes (4) Brushes, (4) Brush Caps and Instruction Sheet.
K
Use existing screws when installing the Brake Repair Kit. The Motor Brake Mounting Screws are not saleable.
