Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes

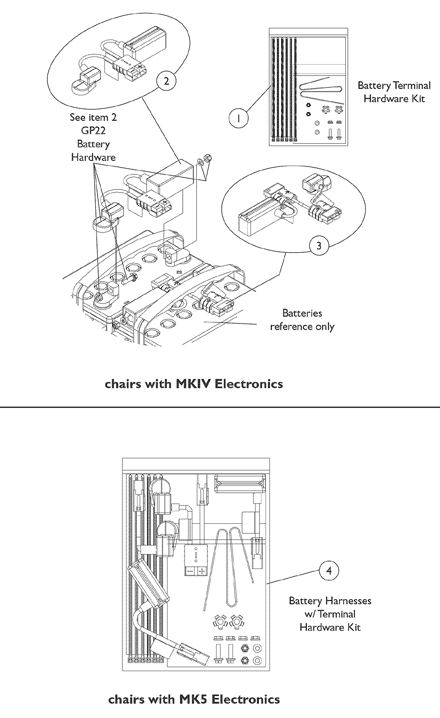

1	1114498	NLA - Battery Terminal Hardware (GP22, MKIV)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1115350	Harness, Wire, Battery (75 Amp) - Rear (MKIV)	1	1	$60.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1115349	Harness, Wire, Battery (75 Amp) - Front (MKIV)	1	1	$70.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1122814	NLA - Harness, Battery, 100 Amp w/ Terminal Hardware - MK5 (Red Connector)	1	1	N/A	C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Note Code	Definition
A	Battery Terminal Hardware is NLA. See item 4 for replacement.
B	Individual components for the front and rear battery harnesses are not available
C	Includes All battery harnesses, battery install instruction sheet, 1 ea. battery lift strap, 2 ea. washer locking tabs, 2 ea. 1/4-20 flange locknuts, 2 ea. 1/4-20 x 7/8" hex flange lock screws, 2 ea. 1/4-20 locknuts, and 6 ea. cable ties.
D	Battery Extension Cable (p/n 1122199) may be needed as well. See Controller, Cables, Programmer, and Hdwr. (MK5) category.
