Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1114308	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	3	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1120233	NLA - Bracket, Limit Switch Mounting, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1026114	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025735	Locknut (#10-32)	1	2	$3.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1055747	NLA - Grommet, Rubber	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1120249	NLA - Harness, Limit Switch	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1144526	NLA - Harness, Limit Switch (MK6i Electronics)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1145414	Cable, Actuator Jumper Adapter (MK6i)	1	1	$45.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1095502	NLA - Package, Tie Wrap (11-1/2" L)	10	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1095503	NLA - Package, Tie Wrap (5-5/8" L)	10	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Note Code	Definition

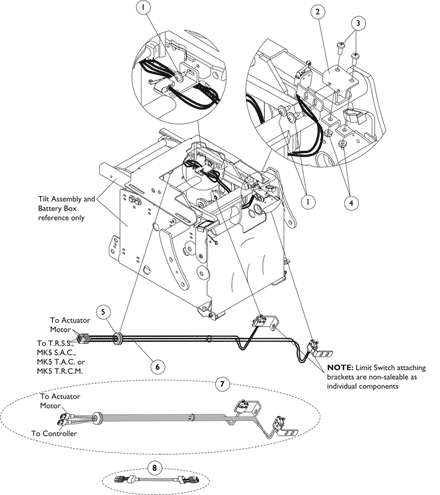

A	Limit switch harness includes the limit switch attaching brackets and rubber grommet as shown assembled in drawing
B	Not Shown
C	Used with item #7 Limit Switch Harness only.
