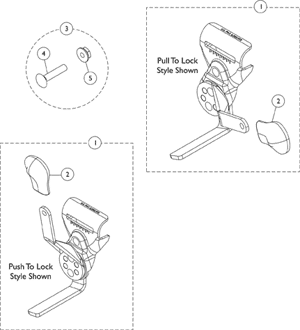

Wheel Locks - Disk Style (After 8/15/03)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1110225

NLA - Wheel Lock Assembly, Disk Push to Lock, Black - Right

N/A

C ,C1 ,C2

Create/add to Wishlist

1110226

NLA - Wheel Lock Assembly, Disk Push to Lock, Black - Left

N/A

C ,C1 ,C2

Create/add to Wishlist

1110227

NLA - Wheel Lock Assembly, Disk Pull to Lock, Black - Right

N/A

C ,C1 ,C2

Create/add to Wishlist

1110228

NLA - Wheel Lock Assembly, Disk Pull to Lock, Black - Left

N/A

C ,C1 ,C2

Create/add to Wishlist

1110160

NLA - Tip, Plastic Wheel Lock Handle, Black

N/A

Create/add to Wishlist

1017677

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2
4	Nut, Hex Flang (1/4-20)	1	2
5	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Nut, Hex Flang (1/4-20)	1	2
3	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
4	Nut, Hex Flang (1/4-20)	1	2
13	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
14	Nut, Hex Flang (1/4-20)	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
	Nut, Hex Flang (1/4-20)	1	2
5	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2
4	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2
	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2

Kit, Hardware, Wheel Lock (Pair)

$13.00

Create/add to Wishlist

1058900

Wheel Lock Extension Handle Assembly, Black (8")

$50.00

Create/add to Wishlist

1045853

Wheel Lock Assembly, Adult, Push To Lock, Black - Right

$61.00

D ,E ,G

Create/add to Wishlist

1045854

Wheel Lock Assembly, Adult, Push To Lock, Black - Left

$61.00

D ,E ,G

Create/add to Wishlist

1045849

NLA - Wheel Lock Assembly, Hemi, Pull to Lock, Black - Right

N/A

D ,E ,G

Create/add to Wishlist

1045850

NLA - Wheel Lock Assembly, Hemi, Pull to Lock, Black - Left

N/A

D ,E ,G

Create/add to Wishlist

1101454

Wheel Lock Assembly, Pull to Lock, Black - Right

$61.00

D ,E ,G ,I

Create/add to Wishlist

1101455

Wheel Lock Assembly, Pull to Lock, Black - Left

$61.00

D ,E ,G ,I

Create/add to Wishlist

1045861

NLA - Wheel Lock Assembly, Adult, Push to Lock, Black - Right

N/A

D ,F ,G ,J

Create/add to Wishlist

1045862

NLA - Wheel Lock Assembly, Adult, Push to Lock, Black - Left

N/A

D ,F ,G

Create/add to Wishlist

1023493

Wheel Lock Assembly, Push to Lock - Right

$61.00

D ,F ,G ,J

Create/add to Wishlist

1023494

Wheel Lock Assembly, Push / Lock - Left

$61.00

D ,F ,G

Create/add to Wishlist

1034165

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Locknut (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Locknut (1/4-20)	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Locknut (1/4-20)	1	2
13	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Locknut (1/4-20)	1	2

NLA - Hardware, Attaching Kit (Pair)

$16.00

D ,H

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes (2) each of item 4,5 and used for Disk-Style Wheel Locks.
B	Not shown. Includes: 1 each Extension Handle and Rubber Tip. Used for Disk-Style Wheel Locks.
C	Disk Style Wheel Locks are no longer available as a Service Part. Must convert to Link-Pivot Style Wheel Locks listed. Order Right/Left side to match. For Removable Arms use part #'s 1045853/1045854 (Push to Lock) or 1045849/1045850 (Pull to Lock)
C1	For Permanent Arms use part #'s 1045861/1045862 (Push to Lock). New Wheel Lock Attaching Hardware part #1034165 also required.
C2	Additional Wheel Lock information can be found under categories titled "Wheel Locks - Link-Pivot Style - Adult and Hemi - Removable Arms" or "Wheel Locks - Link-Pivot Style - Adult - Permanent Arms".
D	Not Shown.
E	Use for Removable Arms.
F	Use for Permanent Arms.
G	Link-Pivot Style Wheel Lock.
H	Used for Link-Pivot Style Wheel Locks. 1034165 in Zinc Finish is NLA. Use part number 1017677 in Black finish as a replacement.
I	NLA. See part numbers 1101454 and 1101455 as replacements.
J	NLA. See part numbers 1023493 and 1023494 as replacements.

Catalog Literature

Parts Books for Tracer® DLX Tracer® EX Invacare® MG Tracer® SX Tracer® SX Recliner Tracer® Titan™ (After 1/98) CareGuard™ by Invacare® CareGuard™ Titan™ by Invacare®
