Rigidizer Bar - Fold Down

Print this page

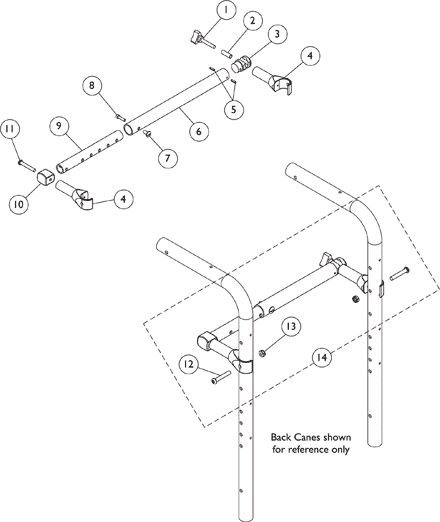

Rigidizer Bar -Fold Down

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1027684	Knob, Clamping, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1118534	Bushing, Steel (5/16 x 1/4 x 1")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1118603	NLA - Plug, Slotted End	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1118605	NLA - Clamp, Rigidizer Bar	1	2	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	51000M705	Pin, Roll (1/8 x 1/2")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1118600	NLA - Tube, Outside Rigidizer Bar, Black	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1118601	NLA - Tube, Outside Rigidizer Bar, Black	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028846	NLA - Rivnut (#10-32)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	0224600	NLA - Screw, Socket Head, Cap (#10-32 x 3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1118599	NLA - Tube, Inside Rigidizer Bar	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1118502	NLA - Cap, End, Lower, Black	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1019590	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1083099	Screw, Socket Button Head (1/4-28 x 1-1/2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	60320X000	Locknut (1/4-28)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1118608	NLA - Kit, Spreader Bar with Hardware	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1118609	NLA - Kit, Spreader Bar with Hardware	1	1	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	10-14" Wide Chairs
B	14-18" Wide Chairs
C	Includes Rigidizer Bar (items 1-11) and items 12-13.
D	Part #1118502 is no longer available as a service part individually. See item 14 as a replacement.
E	Part #1118605 is no longer available as a service part individually. See item 14 as a replacement.

Catalog Literature

Parts Books for Spree XT Spree XT Limited
