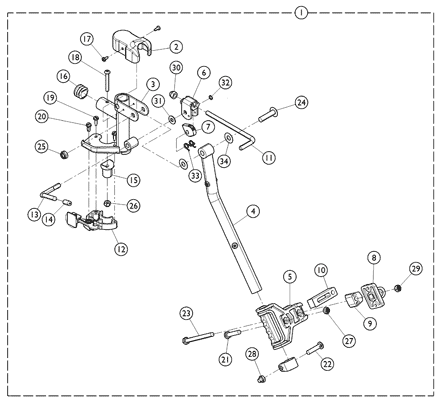

Front Riggings - Legrest Support Assembly - Ratchet Style - AT5044 (Before 9/21/05)

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	8881045291	Legrest Support Assembly, Sector, Color - Right	1	1	$263.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	8881045292	Legrest Support Assembly, Sector, Color - Left	1	1	$263.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1017187	Cover, Top	1	1	$17.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	8881045289	Bracket, Legrest Support, Color - Right	1	1	$135.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	8881045290	Bracket, Legrest Support, Color - Left	1	1	$135.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	8881048851	Tube, Elevating Adjustable Support, Color - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	8881048852	Tube, Elevating Adjustable Support, Color - Left	1	1	$37.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1032266	Bracket, Legrest Pad Mounting, Black	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	04528X002	Bracket, Release, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1037125	Cam, Legrest	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	04526X019	Plate, Legrest Pad	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1025133	Spacer, Legrest Pad, Black	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1032267	Spacer, Legrest Pad Mounting, Black	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	42326X001	Bar, Ratchet	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1025454	Housing, Latch - Right	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1025455	Housing, Latch - Left	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1037126	Handle, Release	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1040060	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1017148	Pivot, Footrest	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1029501	Plug Button, Black (1")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1025729	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1001762	Screw, Socket Button Head (1/4-20 x 1-3/4")	1	1	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1025451	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1017423	Screw, Slotted Hex Washer Head w/ Patch (#10-32 x 1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1028514	Screw, Hex Head (5/16-24 x 1-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1026030	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1037110	Screw, Hex Head (5/16-24 x 3-1/2")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	11919X000	NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	40363X000	Hex Nut (3/8"-16)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1025736	Locknut (1/4-20)	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	1025730	Locknut (5/16-24)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1107321	Nut, Low Cap (5/16"-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	1025730	Locknut (5/16-24)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	10261X000	Nut, Acorn (5/16-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
31	1013519	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
32	1040831	Ring, Snap	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	1037485	Spring, Release	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
34	1058636	NLA - Washer, Nylon (25/64 x 7/8 x 1/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Items 2 - 34.

Catalog Literature

Parts Books for Spree XT Spree XT Limited
