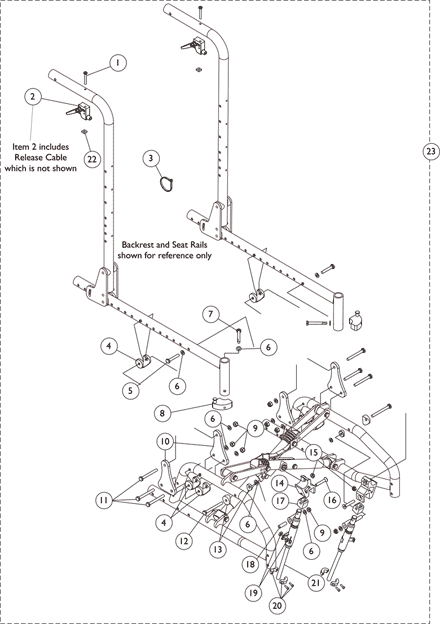

Tilt Hardware

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1026107	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1078451	Release Handle Assembly w/ Cable	1	2	$38.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1021260	Tie Wrap (5-5/8" L)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1118469	Uni-Washer, Coved	1	6	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1055347	NLA - Screw, Hex Head (1/4-28 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026907	Washer (1/4 x 1/2 x 1/16")	1	14	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1052957	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1054571	Kit, Sector Block - Right	1	1	$19.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1054572	Kit, Sector Block - Left	1	1	$19.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1065362	Locknut (1/4-28)	1	8	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1118471	NLA - Plate, Tilt	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1055350	Screw, Hex Head (1/4-28 x 2-1/4")	1	6	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1118541	NLA - Screw, Hex Head (1/4-28 x 2-3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1118472	Bracket, Lock Cylinder, Black	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1025765	Locknut (1/4-28)	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1060097	NLA - Screw, Socket Flat Head (1/4-28 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1118470	Sleeve, Cylinder	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1118534	Bushing, Steel (5/16 x 1/4 x 1")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1071276	NLA - Nut, Hex (1/4-20)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1073707	Clamp, Cylinder with Screws	1	2	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1024006	Cylinder, Lock, Silver - Right	1	1	$163.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1037658	Cylinder, Lock, Silver - Left	1	1	$163.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1086207	Nut, Square (#10-32)	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1118548	Tilt Hardware Kit (Both Sides)	2	1	$1,062.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-22
B	Includes sector block and hardware, items 6 and 7.

Catalog Literature

Parts Books for Spree XT Spree XT Limited
