Canes - Back - Attaching Hardware & Pelvic Positioning Strap

Print this page

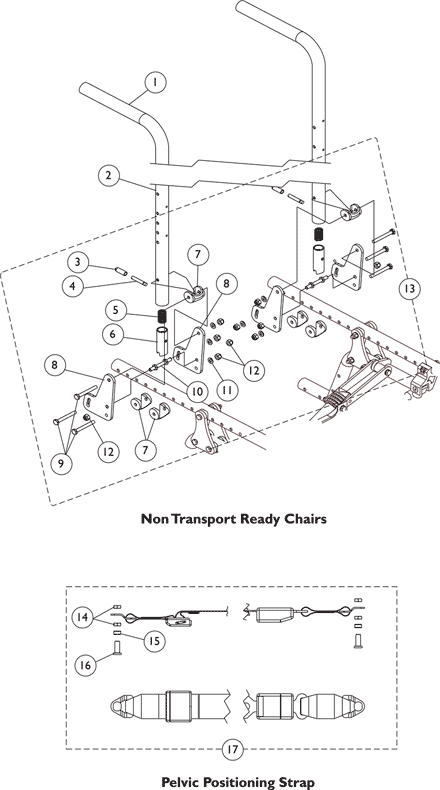

Back Canes, Hardware, and Pelvic Positioning Strap

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1055398	Grip, Hand, Foam (4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1118592	Back Cane Assembly, Black - Right/Left (20" H)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1118593	Back Cane Assembly, Black - Right/Left (24" H)	1	1	$73.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1059271	Tip, Plastic, Black	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1058545	Lever, Actuator	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1011511	Spring, Compression (5/8 x 1 x 3/64")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1058232	Plug, Latch	1	2	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1118469	Uni-Washer, Coved	1	6	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1118474	Plate, Back Angle	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1055349	Screw, Hex Head (1/4-28 x 2")	1	6	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1059127	Pin, Locking	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1026907	Washer (1/4 x 1/2 x 1/16")	1	6	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1065362	Locknut (1/4-28)	1	10	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1118550	Hardware, Backrest, Non Transport Ready (Both Sides)	2	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1118579	NLA - Nut, Hex Jam (3/8-16)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1118568	NLA - Bushing, Nylon (5/16 x 7/16 x 5/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1118569	NLA - Pin, Threaded	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1118580	NLA - Pelvic Positioning Strap w/ Hardware (37" Long)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 3-12
B	Includes Positioning Strap plus items 14-16

Catalog Literature

Parts Books for Spree XT Spree XT Limited
