Frames - Side & Hardware

Print this page

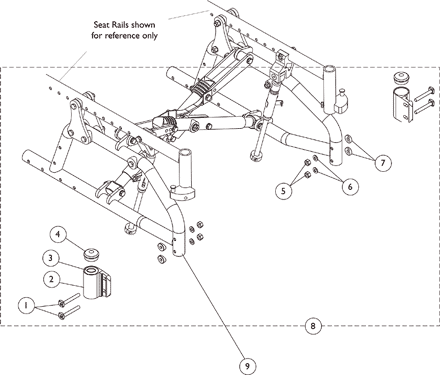

Frames and Frame Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1113501	Screw, Eccentric (1/4-28 x 1-11/16")	1	4	$10.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1118497	Screw, Eccentric (1/4-28 x 1-7/8")	1	4	$14.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1118542	Caster Headtube Assembly, Black - Right	1	1	$69.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1118543	Caster Headtube Assembly, Black - Left	1	1	$69.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	40117X021	Bearing (1/2" I.D. x 1-1/8" O.D.)	1	4	$10.30		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1088523	Plug Button, Head Tube, Black	1	2	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1055366	Locknut (1/4-28)	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026907	Washer (1/4 x 1/2 x 1/16")	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1009861	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1118551	Kit, Frame Hardware, Non Transport Ready Chairs (Pair)	2	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881118493	Frame without Hardware, Color - Right	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881118494	Frame without Hardware, Color - Left	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-7
B	Specify Frame Finish when ordering
C	These screws are used on chairs "without" TRBKTS or TRRO Option.
D	These screws used on chairs equipped with TRBKTS or TRRO Option

Catalog Literature

Parts Books for Spree XT Spree XT Limited
