Front Riggings - Footrest Supports - T93H

Print this page

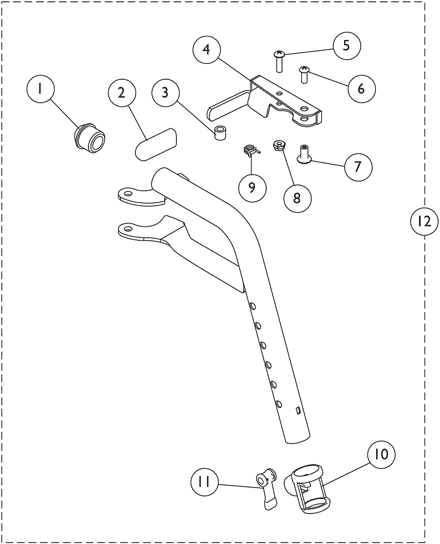

Footrest Support (T93H)

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1020719	Anti-Rattle, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1006490	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	47565X057	Bushing (7/32 x 3/8 x 11/32")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1110178	Handle, Release, Black - Right	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1110179	Handle, Release, Black - Left	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1025716	Screw, Phillips Pan Head (#10-32 x 11/16")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026114	Screw, Phillips Pan Head (#10-32 x 1/2")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028846	NLA - Rivnut (#10-32)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1025735	Locknut (#10-32)	1	1	$3.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1028707	Spring, Release - Right	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1028708	Spring, Release - Left	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1048085	Housing, Cam	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1048086	Lever, Cam, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	8881118241	Footrest Support Assembly, Hemi, Color - Right	1	1	$95.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	8881118242	Footrest Support Assembly, Hemi, Color - Left	1	1	$95.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-11

Catalog Literature

Parts Books for P9000™ XDT
