Frames - Side - Hardware & Anti-Tips

Print this page

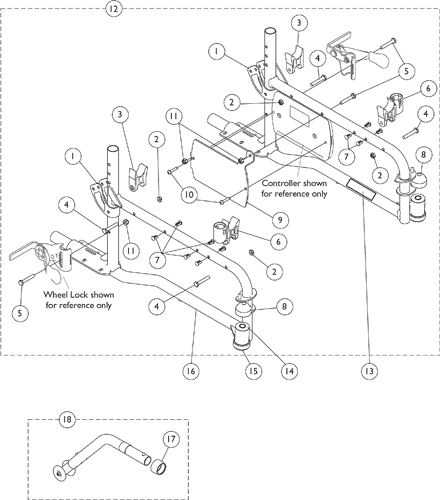

Frames, Frame Hardware, and Anti-Tips

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1066261	Bracket, Armrest, Black	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	60275X000	Locknut (1/4-20)	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1107805	H-Block	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	16720X004	Screw, Hex Head (1/4-20 x 1-1/2")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1030949	Screw, Hex Head (1/4-20 x 1-1/2")	1	3			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1109938	H-Block with Socket Cup	1	2	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1023450	NLA - Rivet, Ratchet	1	10	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1001843	Cap, Head Tube, Black	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1121213	NLA = Bracket, Controller Mounting, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1113439	NLA - Screw, Phillips Pan Head Tap (#10-32 x 1")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1025736	Locknut (1/4-20)	1	3	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1121226	NLA - Hardware, Frame (Pair)	2	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1121206	NLA - Decal, Frame - P9000XDT	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1065530	Bearing, Flange (7/16")	1	2	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1074930	Sleeve w/ Bearing, Black, Adult/Hemi	1	2	$15.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1121207	NLA - Frame Assembly with Bearings, Black - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1121208	NLA - Frame Assembly with Bearings, Black - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	15680X013	Anti-Rattle (1")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1061112	Anti-Tipper, For Chairs with 6" Fork & Caster - 1360A (Pair)	2	1	$67.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-11
B	Includes items 14 and 15
C	Includes 2 Anti-Tippers and Instruction Sheet

Catalog Literature

Parts Books for P9000™ XDT
