Backs - A.B.S. Curved w/o Hardware - 2GR/2GTR w/ V.S.R. (After 4/20/03)

Print this page

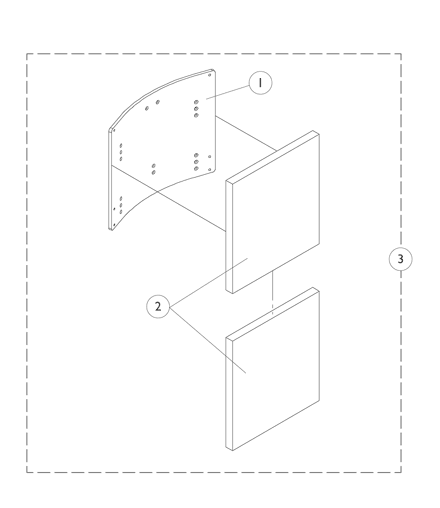

A.B.S. Curved Back w/o Mounting Hardware - 2GR and 2GTR w/ V.S.R.

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" W	17" W	18" W	19" W
20"	15"	1086042- NLA	1086043- NLA	1086044- NLA	1086045- NLA
21"	16"	1086049- NLA	1086050- NLA	1086051- NLA	1086052- NLA
22"	17"	1086056- NLA	1086057- NLA	1086058- NLA	1086059- NLA
23"	18"	1086063- NLA	1086064- NLA	1086065- NLA	1086066- NLA
24"	19"	1086070- NLA	1086071- NLA	1086072- NLA	1086073- NLA
25"	20"	1086077- NLA	1086078- NLA	1086079- NLA	1086080- NLA
26"	21"	1086084- NLA	1086085- NLA	1086086- NLA	1086087- NLA

Create/add to Wishlist

#1 Back Pan (16" - 19" W)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Overall Back Height	Material Back Height	20" W	21" W	22" W
20"	15"	1086046- NLA	1086047- NLA	1086048- NLA
21"	16"	1086053- NLA	1086054- NLA	1086055- NLA
22"	17"	1086060- NLA	1086061- NLA	1086062- NLA
23"	18"	1086067- NLA	1086068- NLA	1086069- NLA
24"	19"	1086074- NLA	1086075- NLA	1086076- NLA
25"	20"	1086081- NLA	1086082- NLA	1086083- NLA
26"	21"	1086088- NLA	1086089- NLA	1086090- NLA

Create/add to Wishlist

#1 Back Pan (20" - 22" W)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" W	17" W	18" W	19" W
20"	15"	1097396	1097397	1097398 MSRP: $194.00	1097399 MSRP: $194.00
21"	16"	1097403 MSRP: $175.00	1097404	1097405 MSRP: $194.00	1097406 MSRP: $194.00
22"	17"	1097410	1097411 MSRP: $194.00	1097412	1097413 MSRP: $194.00
23"	18"	1097417	1097418	1097419	1097420 MSRP: $194.00
24"	19"	1097424	1097425 MSRP: $194.00	1097426 MSRP: $194.00	1097427 MSRP: $194.00
25"	20"	1097431	1097432	1097433	1097434 MSRP: $194.00
26"	21"	1097438	1097439 MSRP: $194.00	1097440	1097441 MSRP: $184.00

Create/add to Wishlist

#2 Back Cushion Assembly (16" - 19" W)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Overall Back Height	Material Back Height	20" W	21" W	22" W
20"	15"	1097400 MSRP: $194.00	1097401 MSRP: $194.00	1097402
21"	16"	1097407 MSRP: $194.00	1097408 MSRP: $175.00	1097409
22"	17"	1097414	1097415 MSRP: $194.00	1097416
23"	18"	1097421	1097422	1097423 MSRP: $194.00
24"	19"	1097428 MSRP: $194.00	1097429	1097430
25"	20"	1097435 MSRP: $194.00	1097436 MSRP: $194.00	1097437
26"	21"	1097442 MSRP: $175.00	1097443 MSRP: $194.00	1097444 MSRP: $775.00

Create/add to Wishlist

#2 Back Cushion Assembly (20" - 22" W)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" W	17" W	18" W	19" W
20"	15"	Note-A 1090589- NLA	Note-A 1090590- NLA	Note-A 1090591- NLA	Note-A 1090592- NLA
21"	16"	Note-A 1090596- NLA	Note-A 1090597- NLA	Note-A 1090598- NLA	Note-A 1090599- NLA
22"	17"	Note-A 1090603- NLA	Note-A 1090604- NLA	Note-A 1090605- NLA	Note-A 1090606- NLA
23"	18"	Note-A 1090610- NLA	Note-A 1090611- NLA	Note-A 1090612- NLA	Note-A 1090613- NLA
24"	19"	Note-A 1090617- NLA	Note-A 1090618- NLA	Note-A 1090619- NLA	Note-A 1090620- NLA
25"	20"	Note-A 1090624- NLA	Note-A 1090625- NLA	Note-A 1090626- NLA	Note-A 1090627- NLA
26"	21"	Note-A 1090631- NLA	Note-A 1090632- NLA	Note-A 1090633- NLA	Note-A 1090634- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	No longer available. Must be ordered as separate components, Item 1 (Back Pan) and Item 2 (Back Cushion Assembly).

#3 Back Assembly w/o Hardware (16" - 19" W)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Overall Back Height	Material Back Height	20" W	21" W	22" W
20"	15"	Note-A 1090593- NLA	Note-A 1090594- NLA	Note-A 1090595- NLA
21"	16"	Note-A 1090600- NLA	Note-A 1090601- NLA	Note-A 1090602- NLA
22"	17"	Note-A 1090607- NLA	Note-A 1090608- NLA	Note-A 1090609- NLA
23"	18"	Note-A 1090614- NLA	Note-A 1090615- NLA	Note-A 1090616- NLA
24"	19"	Note-A 1090621- NLA	Note-A 1090622- NLA	Note-A 1090623- NLA
25"	20"	Note-A 1090628- NLA	Note-A 1090629- NLA	Note-A 1090630- NLA
26"	21"	Note-A 1090635- NLA	Note-A 1090636- NLA	Note-A 1090637- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	No longer available. Must be ordered as separate components, Item 1 (Back Pan) and Item 2 (Back Cushion Assembly).

#3 Back Assembly w/o Hardware (20" - 22" W)

N/A

Create/add to Wishlist

1125723

Kit, Hook Fastener w/ Adhesive Back

$19.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Not Shown. Hook Fastener Adhesive Kit is used to attach the Back Cover to the Back Pan and must be ordered when a new Back Pan or Back Assembly is requested.

Catalog Literature

Parts Books for Tarsys® Tilt Only (2GT™) Recline Only (2GR™) Tilt and Recline (2GTR™)
