1

1056328

Plug Button, Black (1")

1

4

$8.00

Create/add to Wishlist

2

See Chart

Added to Cart

Chair Width		10" Deep		11" Deep		12" Deep
10"		1031540- NLA		1033810- NLA		1031542- NLA
12"		1031541- NLA		1033811- NLA		1031543- NLA

Create/add to Wishlist

#2 Crossbrace Pair Kits (10-12" Deep)

N/A

Create/add to Wishlist

2

See Chart

Added to Cart

Chair Width	14" Deep	15" Deep	16" Deep	17" Deep	18" Deep
14"	1031509- NLA	1031510- NLA	1031511- NLA	1031512- NLA	1031513- NLA
15"	1031514- NLA	1031515- NLA	1031516- NLA	1031517- NLA	1031518- NLA
16"	1031519- NLA	1031520- NLA	1031526- NLA	1031521- NLA	1031522- NLA
17"	1031523- NLA	1031524- NLA	1031525- NLA	1031527- NLA	1031528- NLA
18"	1031529- NLA	1031530- NLA	1031531- NLA	1031532- NLA	1031533- NLA
19"	N/A	N/A	1031534- NLA	1031535- NLA	1031536- NLA
20"	N/A	N/A	1031537- NLA	1031538- NLA	1031539- NLA

Create/add to Wishlist

#2 Crossbrace Pair Kits (14-18" Deep)

N/A

Create/add to Wishlist

2

See Chart

Added to Cart

Chair Width	10" Deep	11" Deep	12" Deep	13" Deep	14" Deep
10" Right	1025657- NLA	1028241- NLA	1025659- NLA	N/A	N/A
10" Left	1025658- NLA	1028242- NLA	1025660- NLA	N/A	N/A
12" Right	1025661- NLA	1028243- NLA	1025663- NLA	1032150- NLA	1032152- NLA
12" Left	1025662- NLA	1028244- NLA	1025664- NLA	1032151- NLA	1032153- NLA
13" Right	1032154- NLA	1032156	1032158- NLA	1032160- NLA	1032162- NLA
13" Left	1032155- NLA	1032157- NLA	1032159- NLA	1032161- NLA	1032163- NLA
14" Right	1032164- NLA	1032166- NLA	1032168- NLA	1032170- NLA	1025665
14" Left	1032165- NLA	1032167- NLA	1032169- NLA	1032171- NLA	1025666

Create/add to Wishlist

#2 Single Crossbraces (10-14" W x 10-14" D)

N/A

Create/add to Wishlist

2

See Chart

Added to Cart

Chair Width	14" Deep	15" Deep	16" Deep	17" Deep	18" Deep
14" Right	1025665	1028203- NLA	1025667- NLA	1028205- NLA	1028207- NLA
14" Left	1025666	1028204- NLA	1025668- NLA	1028206- NLA	1028208- NLA
15" Right	1025669- NLA	1028209- NLA	1025671- NLA	1028211- NLA	Note-C 1028213- NLA
15" Left	1025670- NLA	1028210- NLA	1025672- NLA	1028212- NLA	Note-C 1028214- NLA
16" Right	Note-A 1025673- NLA	1028215	1025675 MSRP: $151.00	1028217	1028219 MSRP: $151.00
16" Left	Note-A 1025674- NLA	1028216	1025676 MSRP: $151.00	1028218	1028220 MSRP: $151.00
17" Right	Note-B 1025677- NLA	1028221	1025679 MSRP: $151.00	1028223 MSRP: $151.00	1028225
17" Left	Note-B 1025678- NLA	1028222	1025680 MSRP: $151.00	1028224 MSRP: $151.00	1028226
18" Right	1025681- NLA	1028227	1025683 MSRP: $99.00	1028229 MSRP: $151.00	1028231 MSRP: $99.00
18" Left	1025682- NLA	1028228- NLA	1025684 MSRP: $99.00	1028230 MSRP: $151.00	1028232 MSRP: $99.00
19" Right	N/A	N/A	1025685 MSRP: $151.00	1028233 MSRP: $151.00	1028235
19" Left	N/A	N/A	1025686	1028234 MSRP: $151.00	1028236
20" Right	N/A	N/A	1025687 MSRP: $99.00	1028237 MSRP: $151.00	1028239
20" Left	N/A	N/A	1025688 MSRP: $99.00	1028238 MSRP: $151.00	1028240

Create/add to Wishlist

See chart-note

#2 Single Crossbraces (14-20" W x 14-18" D)

N/A

Create/add to Wishlist

3

1026106

NLA - Washer (1/4 x 5/8 x 1/16")

1

4

N/A

Create/add to Wishlist

4

7930334

NLA - Locknut (1/4-28)

25

2

N/A

Create/add to Wishlist

5

1016263

Spacer, Coved (3/4 x 1 x 1/2")

1

4

$9.20

Create/add to Wishlist

6

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

2

$7.20

Create/add to Wishlist

7

7930330

NLA - Locknut (5/16-24)

25

1

N/A

Create/add to Wishlist

8

1025642

NLA - Link, Pivot, Black (10 - 12" W)

1

2

N/A

A

Create/add to Wishlist

8

1025645

Link, Pivot, Black (13 - 15" W)

1

2

B

Create/add to Wishlist

8

1025647

Link, Pivot, Black (16 - 17" W)

1

2

$110.00

C

Create/add to Wishlist

8

1025649

Link, Pivot, Black (18 - 20" W)

1

2

$110.00

D

Create/add to Wishlist

9

1055348

Screw, Hex Head (1/4-28 x 1-3/4")

1

2

$9.00

Create/add to Wishlist

10

1025705

NLA - Screw, Hex Head (5/16-24 x 3-1/4")

1

N/A

Create/add to Wishlist

11

7930313

Package, Washer, Nylon (5/16 x 7/8 x 1/8")

25

1

$44.00

Note Code	Definition
A	10-12" Wide
B	13-15" Wide
C	16-17" Wide
D	18-20" Wide

Maximum of three products are allowed for comparison.

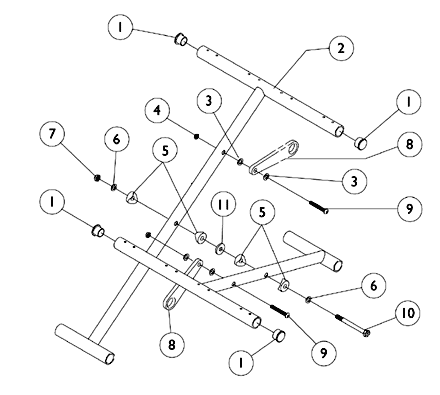

Crossbraces & Hardware
