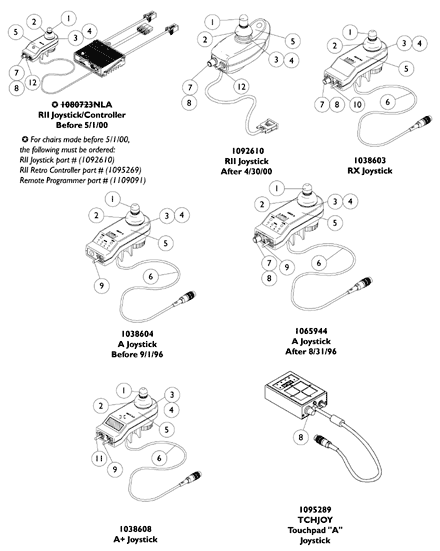

Electronics - MKIV Joysticks RII, RX, A, A+, TCHJOY

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1080723

NLA - Joystick/Controller, MKIV RII

N/A

A ,C

Create/add to Wishlist

1095269

NLA - Controller, MKIV RII, Retro

N/A

Create/add to Wishlist

1109091

NLA - Programmer, Remote

N/A

Create/add to Wishlist

See Chart

Added to Cart

Item Number	Description	RII	RX	A Before 9/1/96	A After 8/31/96	A+	TCHJOY
See Pictorial	Joystick Assembly	1092610- NLA	1038603- NLA	1038604- NLA	1065944- NLA	1038608- NLA	1095289- NLA
1	Knob, Joystick	1040217 MSRP: $10.00	1040217 MSRP: $10.00	1040217 MSRP: $10.00	1040217 MSRP: $10.00	1040217 MSRP: $10.00	N/A
2	Skirt, Joystick	1040218 MSRP: $10.00	1040218 MSRP: $10.00	1040218 MSRP: $10.00	1040218 MSRP: $10.00	1040218 MSRP: $10.00	N/A
3	Inductive, Joystick Before 10/1/02	Note-B 1036764- NLA	Note-C 1036764- NLA	Note-B 1036764- NLA	Note-C 1036764- NLA	Note-B 1036764- NLA	N/A
3	Inductive, Joystick After 9/20/02	N/A	Note-D 1104397- NLA	N/A	Note-D 1104397- NLA	N/A	N/A
4	Boot, Joystick	50000X364- NLA	50000X364- NLA	50000X364- NLA	50000X364- NLA	50000X364- NLA	N/A
5	Overlay, Joystick Decal	Note-A 1049692- NLA	1038642- NLA	1040190- NLA	1040190- NLA	1036776- NLA	N/A
6	Cable Assembly Before 10/1/02	N/A	Note-C 1036750- NLA	Note-B 1036750- NLA	Note-C 1036750- NLA	Note-B 1036750- NLA	N/A
6	Cable Assembly After 9/20/02	N/A	Note-D 1104205- NLA	N/A	Note-D 1104205- NLA	N/A	N/A
7	Potentiometer, Speed (Speed Pot) Before 10/1/02	Note-B 1040225- NLA	Note-C 1040225- NLA	N/A	Note-C 1040225- NLA	N/A	N/A
7	Potentiometer, Speed (Speed Pot) After 9/30/02	N/A	Note-D 1115518- NLA	N/A	Note-D 1115518- NLA	N/A	N/A
8	Knob, Potentiometer	1025516- NLA	1025516- NLA	N/A	1025516- NLA	N/A	1025516- NLA
9	Switch, On/Off Momentary Before 10/1/02	N/A	N/A	Note-B 1040185- NLA	Note-C 1040185- NLA	Note-B 1040185- NLA	N/A
9	Switch, On/Off Momentary After 9/20/02	N/A	N/A	N/A	Note-D 1115523- NLA	N/A	N/A
10	Switch, Off/ 1-2 Before 10/1/02	N/A	Note-C 1038627- NLA	N/A	N/A	N/A	N/A
10	Switch, Off/ 1-2 After 9/20/02	N/A	Note-D 1115521- NLA	N/A	N/A	N/A	N/A
11	Switch, Program	N/A	N/A	N/A	N/A	Note-B 1040186- NLA	N/A
12	Switch, Toggle SPDT	Note-B 1010042- NLA	N/A	N/A	N/A	N/A	N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Cable assembly and joystick overlay decal for RII joystick before 10/01/02 and after 9/30/02 are not available.
B	Item requires soldering.
C	Before 10/01/02 item requires soldering.
D	After 9/30/02 item has a non-solder connector.
E	The Dynamic inductive shaft will have a hole drilled 1/4" down from the top. Flightlink doesn't have this feature.

MKIV Joysticks

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	For chairs made before 5/1/00, the following must be ordered, RII Joystick #1092610, RII Retro Controller #1095269 and Remote Programmer #1109091.
B	Not Shown
C	For joystick inductive and switch components, refer to chart under RII joystick assembly #1092610.

Catalog Literature

Parts Books for Storm Series® Ranger II™
