1

1041149

NLA - Kit, Backrest Hardware (Pair)

1

N/A

A

Create/add to Wishlist

2

40157X020

Spacer, Coved (1/4 x 1 x 9/16")

1

2

$7.20

Create/add to Wishlist

3

1055349

Screw, Hex Head (1/4-28 x 2")

1

4

$10.00

Create/add to Wishlist

4

1026907

Washer (1/4 x 1/2 x 1/16")

1

16

$7.20

Create/add to Wishlist

5

1025765

Locknut (1/4-28)

1

4

$7.20

Create/add to Wishlist

6

1039232

NLA - Cam, Adjustment

1

N/A

Create/add to Wishlist

7

1081354

NLA - Latch, Backrest - Right

1

N/A

Create/add to Wishlist

7

1081355

NLA - Latch, Backrest - Left

1

N/A

Create/add to Wishlist

8

1079920

NLA - Plate, Backrest Support -Right

1

N/A

Create/add to Wishlist

8

1079921

NLA - Plate, Backrest Support -Left

1

N/A

Create/add to Wishlist

9

1040776

NLA - Spacer, Nylon (1/4 x 1 x 1/4")

1

2

N/A

Create/add to Wishlist

10

1012371

Washer, Nylon (3/8 x 7/8 x 1/16")

1

$10.00

Create/add to Wishlist

11

1026162

Spacer (1/4 x 3/8 x 11/32")

1

Create/add to Wishlist

12

1025728

Washer (1/4 x 1/2 x 1/32")

1

$11.00

Create/add to Wishlist

13

1039233

NLA - Spacer, Back Stop (1/4 x 7/16 x 5/8")

1

$4.00

Create/add to Wishlist

14

1141633

Cord, Nylon (6-1/2 ft.)

1

$9.00

Create/add to Wishlist

15

1026971

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Plug Button, Black (3/4")	1	2
	NLA - Tube, Insert, Adjustable Back (8 - 11" H)	1	2
	Spring, Torsion w/ Button	1	2
	Bushing, Pivot	1	2
2	Plug Button, Black (3/4")	1	2
3	NLA - Tube, Insert, Adjustable Back (8 - 11" H)	1	2
4	Spring, Torsion w/ Button	1	2
5	Bushing, Pivot	1	2
2	Plug Button, Black (3/4")	1	2
3	NLA - Tube, Insert, Adjustable Back (8 - 11" H)	1	2
4	Spring, Torsion w/ Button	1	2
5	Bushing, Pivot	1	2

Back Canes, Adjustable w/o Push Handle (8-11" H)

2

1

$37.00

Create/add to Wishlist

15

1026972

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Plug Button, Black (3/4")	1	2
	NLA - Tube, Insert, Adjustable Back (10 - 20" H)	1	2
	Spring, Torsion w/ Button	1	2
	Bushing, Pivot	1	2
2	Plug Button, Black (3/4")	1	2
3	NLA - Tube, Insert, Adjustable Back (10 - 20" H)	1	2
4	Spring, Torsion w/ Button	1	2
5	Bushing, Pivot	1	2
2	Plug Button, Black (3/4")	1	2
3	NLA - Tube, Insert, Adjustable Back (10 - 20" H)	1	2
4	Spring, Torsion w/ Button	1	2
5	Bushing, Pivot	1	2

Back Canes, Adjustable w/o Push Handle (10-14"/16-20" H)

2

1

$68.00

Create/add to Wishlist

16

1054773

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Grip, Foam (8")	1	1
	Plug Button, Black (3/4")	1	1
	NLA - Back Cane w/ Push Handle, Straight (10-14" H)	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1
21	Grip, Foam (8")	1	1
22	Plug Button, Black (3/4")	1	1
23	NLA - Back Cane w/ Push Handle, Straight (10-14" H)	1	1
24	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
25	Locknut (1/4-20)	1	1
	Grip, Foam (8")	1	1
	Plug Button, Black (3/4")	1	1
	NLA - Back Cane w/ Push Handle, Straight (10-14" H)	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1

NLA - Cane, Back, Straight w/ Push Handle and Hardware (10-14" H)

1

N/A

Create/add to Wishlist

16

1054774

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Grip, Foam (8")	1	1
	Plug Button, Black (3/4")	1	1
	NLA - Back Cane w/ Push Handle, Straight (12-16" H)	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1
21	Grip, Foam (8")	1	1
22	Plug Button, Black (3/4")	1	1
23	NLA - Back Cane w/ Push Handle, Straight (12-16" H)	1	1
24	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
25	Locknut (1/4-20)	1	1
	Grip, Foam (8")	1	1
	Plug Button, Black (3/4")	1	1
	NLA - Back Cane w/ Push Handle, Straight (12-16" H)	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1

NLA - Cane, Back, Straight w/ Push Handle and Hardware (12-16" H)

1

N/A

Create/add to Wishlist

16

1027850

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Grip, Foam (8")	1	1
	NLA - Cane, Back, Straight, Black - Right/Left	1	1
	Screw w/ Washer (#10 x 7/8")	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1
21	Grip, Foam (8")	1	1
22	NLA - Cane, Back, Straight, Black - Right/Left	1	1
23	Screw w/ Washer (#10 x 7/8")	1	1
24	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
25	Locknut (1/4-20)	1	1
	Grip, Foam (8")	1	1
	NLA - Cane, Back, Straight, Black - Right/Left	1	1
	Screw w/ Washer (#10 x 7/8")	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1

NLA - Cane, Back, Straight w/ Push Handle and Hardware (12-16" and 14-18" H)

1

N/A

Create/add to Wishlist

16

1044031

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	NLA - Back Cane, Straight w/ Push Handle	1	1
	Grip, Foam (8")	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1
21	Grip, Foam (8")	1	1
22	NLA - Back Cane, Straight w/ Push Handle	1	1
24	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
25	Locknut (1/4-20)	1	1
	NLA - Back Cane, Straight w/ Push Handle	1	1
	Grip, Foam (8")	1	1
	NLA - Back Cane, Straight w/ Push Handle	1	1
	Grip, Foam (8")	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1

NLA - Back Cane w/ Hardware, Straight w/ Push Handle (14-18" and 16-20" H)

1

N/A

Create/add to Wishlist

1038784

NLA - Pin, Roll (3/16 x 1/2")

1

N/A

B ,C

Create/add to Wishlist

1038785

NLA - Pin, Roll (1/8 x 3/8")

1

N/A

B ,C

Create/add to Wishlist

1039231

NLA - Latch, Black

1

N/A

B ,C

Create/add to Wishlist

1039234

NLA - Spring, Leaf

1

N/A

B ,C

Create/add to Wishlist

1039235

NLA - Plate, Backrest Support, Right

1

N/A

B

Create/add to Wishlist

1039236

NLA - Plate, Backrest Support, Left

1

N/A

B

Note Code	Definition
A	Includes Items 2 thru 13.
B	Not Shown.
C	Before 5/7/98 only.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

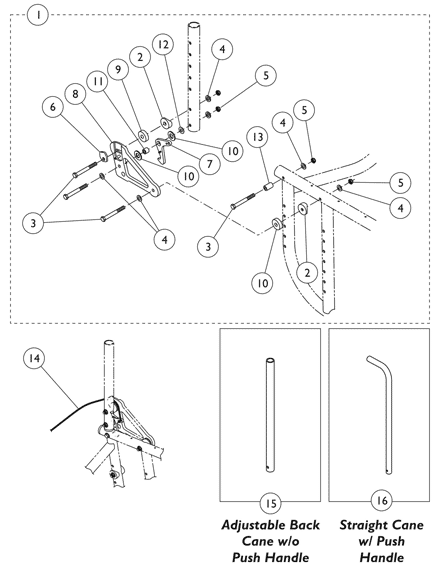

Rear Upright Tube Mounting Hardware & Back Canes
