Electronics - MKIV Joysticks, PSF and PSR (Before 2/15/03)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

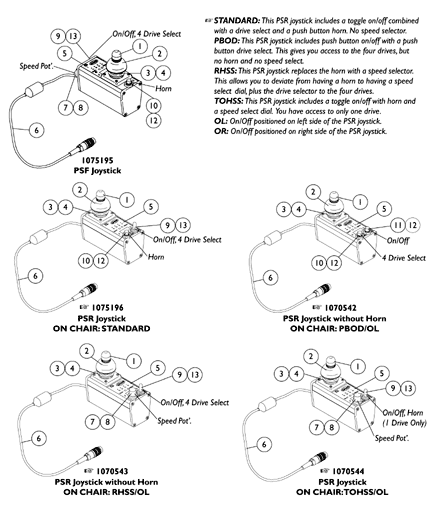

Item Number		Description		PSF		PSR
See Pictorial		Joystick Assembly		N/A		1075196- NLA
See Pictorial		Joystick Assembly		1075195- NLA		8881075196
See Pictorial		Joystick Assembly		N/A		1070542- NLA
See Pictorial		Joystick Assembly		N/A		1070543- NLA
See Pictorial		Joystick Assembly		N/A		1070544- NLA
1		Knob, Joystick		1040217 MSRP: $10.00		1040217 MSRP: $10.00
2		Skirt, Joystick		1040218 MSRP: $10.00		1040218 MSRP: $10.00
3		Inductive, Joystick		1036764- NLA		1036764- NLA
4		Boot, Joystick		50000X364- NLA		50000X364- NLA
5		Overlay, Joystick Decal		1075034- NLA		1079925- NLA
6		Cable Assembly		1036750- NLA		1036750- NLA
7		Potentiometer, Speed		1040225- NLA		1040225- NLA
8		Knob, Potentiometer		1025516- NLA		1025516- NLA
9		Switch, On/Off Momentary		1040185- NLA		1040185- NLA
10		Switch, Push Button SPST Momentary		1010047- NLA		1010047- NLA
11		Switch, Push Button SPST		N/A		1010048- NLA
12		Boot, Switch		1010049- NLA		1010049- NLA
13		Boot, Switch		1058464- NLA		1058464- NLA
