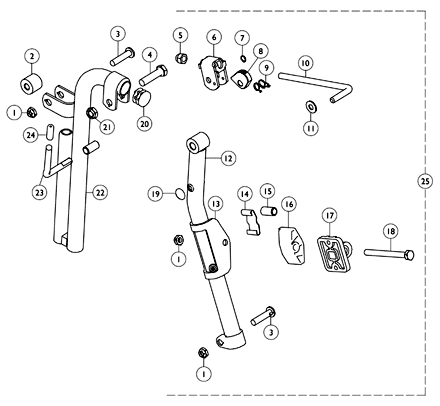

Front Riggings - Legrest Support Assembly - TR12

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1107321	Nut, Low Cap (5/16"-24)	1	3	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	47324X011	Bushing, Pivot (5/16 x 7/8 x 3/4")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	11919X000	NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	10261X000	Nut, Acorn (5/16-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	04528X002	Bracket, Release, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1040831	Ring, Snap	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1037125	Cam, Legrest	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1037485	Spring, Release	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1037126	Handle, Release	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1013519	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	04526X040	NLA - Tube, Elevating Support, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	04526X041	NLA - Tube, Elevating Support, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1025104	Bracket, Legrest, Chrome	1	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	48823X008	Spring, Leaf	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	47328X003	Bushing, Pivot (5/16 x 7/16 x 7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1091220	Spacer, Legrest	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	04526X019	Plate, Legrest Pad	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1014807	Screw, Hex Head (5/16-24 x 3-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1096773	Nut, Push Dome (5/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1027095	Plug Button, Black (7/8")	1	1	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	40363X000	Hex Nut (3/8"-16)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1009959	NLA - Support, Legrest w/ Release Handle - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1009960	NLA - Support, Legrest w/ Release Handle - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	42326X001	Bar, Ratchet	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1040060	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1041820	NLA - Legrest Support Assembly, Chrome - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1041821	NLA - Legrest Support Assembly, Chrome - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1046328	NLA - Kit, Ratchet	2	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-24.
B	Includes items 5-11 and 23-24.

Catalog Literature

Parts Books for Tracer® DLX Tracer® EX Invacare® MG Tracer® SX Tracer® SX Recliner Tracer® Titan™ (After 1/98) CareGuard™ by Invacare® CareGuard™ Titan™ by Invacare®
