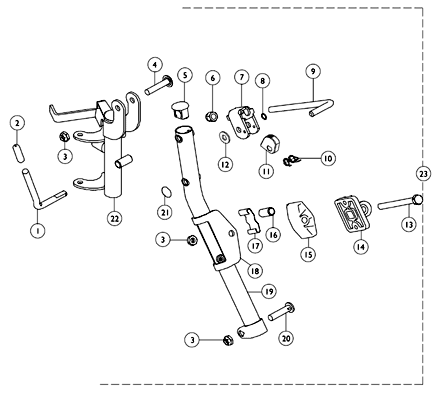

Front Riggings - Legrest Support Assembly - TR14, TRP14, CG14, TLX4A/C, T934A/C
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1037126 | Handle, Release | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 2 | 1040060 | Tip, Plastic, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 3 | 1107321 | Nut, Low Cap (5/16"-24) | 1 | 3 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 4 | 1030948 | Screw, Slotted Truss Head (5/16-24 x 1-1/2") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 5 | 1095433 | Plug Button, Black (7/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 6 | 10261X000 | Nut, Acorn (5/16-24) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 7 | 04528X002 | Bracket, Release, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 8 | 1040831 | Ring, Snap | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 9 | 42326X001 | Bar, Ratchet | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 10 | 1037485 | Spring, Release | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 11 | 1037125 | Cam, Legrest | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 12 | 1013519 | Washer, Nylon (5/16 x 11/16 x 1/16") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 13 | 1014807 | Screw, Hex Head (5/16-24 x 3-1/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 14 | 04526X019 | Plate, Legrest Pad | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 15 | 1091220 | Spacer, Legrest | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 16 | 47328X003 | Bushing, Pivot (5/16 x 7/16 x 7/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 17 | 48823X008 | Spring, Leaf | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 18 | 1025104 | Bracket, Legrest, Chrome | 1 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 19 | 1095434 | NLA - Tube, Support, Chrome - Right | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||
| 19 | 1095435 | NLA - Tube, Support, Chrome - Left | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||
| 20 | 11232X009 | Bolt, Lug (5/16-24 x 1-3/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 21 | 1096773 | Nut, Push Dome (5/16") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 22 | 1031581 | NLA - Legrest Support Tube Assembly, Adult, Black - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 22 | 1031582 | Legrest Support Tube Assembly, Adult, Black - Left | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||
| 1046328 | NLA - Kit, Ratchet | 2 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||
| 23 |
See Chart
Added to Cart
Create/add to WishlistCreate/add to WishlistSee chart-note
|
Item #23 Upper Support Assembly | N/A | N/A | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Due to product improvement, item #5 must also be ordered. |
| B | Includes items 1-2, 6-10, and 12. |
| C | Includes items 1-22. |
