Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Footrest, Center Mount Rigging, Black (16"-19" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Footrest, Center Mount Rigging, Black (16"-19" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Footrest, Center Mount Rigging, Black (16"-19" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Footrest, Center Mount Rigging, Black (16"-19" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Footrest, Center Mount Rigging, Black (16"-19" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1

Kit, CTMT-F Center Mount Riggings Mounting Hardware (16" - 19" D)

1

$334.00

A

Create/add to Wishlist

12

1146336

Support, Footrest, Center Mount Rigging, Black (16"-19" D)

1

$307.00

Create/add to Wishlist

18

1113389

Housing, Ratchet

1

$73.00

Create/add to Wishlist

19

1113383

Bearing, Glide

1

2

$11.00

Create/add to Wishlist

21

1113622

Cable/Brake Assembly

1

$51.00

Create/add to Wishlist

22

1028527

NLA - Washer, Lock (3/16 x 5/16 x 1/32")

1

2

N/A

Create/add to Wishlist

23

40163X008

Screw, Phillips Pan Head (#10-32 x 11/16")

1

2

$10.00

Create/add to Wishlist

25

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

1

2

$116.00

B

Create/add to Wishlist

1

1147096

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Center Mount Rigging, Black (19"-22" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Center Mount Rigging, Black (19"-22" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Center Mount Rigging, Black (19"-22" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Center Mount Rigging, Black (19"-22" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
19	Bearing, Glide	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Center Mount Rigging, Black (19"-22" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (16-24" Wide)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1

Kit, CTMT-F Center Mount Riggings Mounting Hardware (19"-22" Deep)

1

$278.00

A

Create/add to Wishlist

12

1147091

Support, Center Mount Rigging, Black (19"-22" D)

1

Create/add to Wishlist

18

1113389

Housing, Ratchet

1

$73.00

Create/add to Wishlist

19

1113383

Bearing, Glide

1

2

$11.00

Create/add to Wishlist

21

1113622

Cable/Brake Assembly

1

$51.00

Create/add to Wishlist

22

1028527

NLA - Washer, Lock (3/16 x 5/16 x 1/32")

1

2

N/A

Create/add to Wishlist

23

40163X008

Screw, Phillips Pan Head (#10-32 x 11/16")

1

2

$10.00

Create/add to Wishlist

25

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

1

$116.00

B

Create/add to Wishlist

1145733

NLA - Instruction Sheet, Center Mount Rigging For Formula CG

1

N/A

C

Note Code	Definition
A	Includes items 2-24
B	Includes items 18-19 & 21-24
C	Not Shown

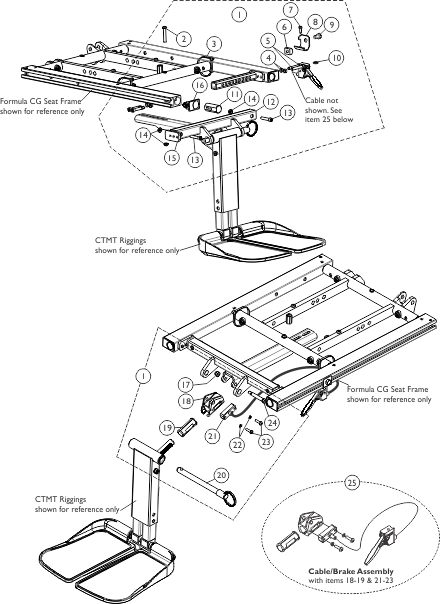

Front Riggings - Center Mount Rigging Mtg Hdwr. (16-22" Wide)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Front Riggings - Center Mount Rigging Mtg Hdwr. (16-22" Wide)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
