EQUIPMENT US Site

1

1028481

NLA - Screw, Socket Head (1/4-20 x 1/2")

1

16

N/A

Create/add to Wishlist

2

1046298

NLA - Half Clamp

1

4

N/A

Create/add to Wishlist

3

1046235

NLA - Spacer, Camber Tube

1

2

N/A

Create/add to Wishlist

4

1046399

NLA - Hex Jam Nut (5/8-24)

1

2

N/A

Create/add to Wishlist

5

1048768

NLA - Bushing, Axle, Quick Release

1

2

N/A

Create/add to Wishlist

5

1049335

NLA - Bushing, Axle, Quad Release

1

2

N/A

Create/add to Wishlist

6

See Chart

Added to Cart

Camber Angle		Part Number
0 degrees		1046237- NLA
3 degrees		1046238- NLA
6 degrees		1046239- NLA
9 degrees		1046240- NLA
12 degrees		1046241- NLA

Create/add to Wishlist

Camber Bars

N/A

Create/add to Wishlist

7

1065939

NLA - Screw, Hex Head (3/8-16 x 1")

1

2

N/A

Create/add to Wishlist

8

1065940

NLA - Washer (3/8 x 3/4 x 5/64")

1

2

N/A

Create/add to Wishlist

9

1062890

NLA - Frame, Clamp, Black

1

2

N/A

Create/add to Wishlist

10

1062875

NLA - Clamp, Axle Tube - Right

1

N/A

Create/add to Wishlist

10

1062876

NLA - Clamp, Axle Tube - Left

1

N/A

Create/add to Wishlist

11

1065886

Ring, Toe-In/Toe-Out Adjusting

1

2

Create/add to Wishlist

12

1066489

NLA - Screw, Thread Forming (M4 x 16mm)

1

2

N/A

Create/add to Wishlist

13

1065362

Locknut (1/4-28)

1

2

$7.20

Create/add to Wishlist

14

1026907

Washer (1/4 x 1/2 x 1/16")

1

2

$7.20

Create/add to Wishlist

15

1055347

NLA - Screw, Hex Head (1/4-28 x 1-1/2")

1

2

N/A

Create/add to Wishlist

16

1065887

NLA - Ring, Indexing

1

2

N/A

Create/add to Wishlist

17

1064265

NLA - Pin, Quick Release

1

2

N/A

Create/add to Wishlist

18

1062949

NLA - Decal, Indexing

1

2

N/A

Create/add to Wishlist

19

See Chart

Added to Cart

Camber Angle Dual Settings	Right	Left
0 - 3 degrees	1066219- NLA	1066229- NLA
0 - 6 degrees	1066220- NLA	1066230- NLA
0 - 9 degrees	1066221- NLA	1066231- NLA
0 - 12 degrees	1066222- NLA	1066232- NLA
3 - 6 degrees	1066223- NLA	1066233- NLA
3 - 9 degrees	1066224- NLA	1066234- NLA
3 - 12 degrees	1066225- NLA	1066235- NLA
6 - 9 degrees	1066226- NLA	1066236- NLA
6 - 12 degrees	1066227- NLA	1066237- NLA
9 - 12 degrees	1066228- NLA	1066238- NLA

Create/add to Wishlist

Dual Setting Camber Insert

N/A

Create/add to Wishlist

20

See Chart

Added to Cart

		Chair Width
12"	13"	14"	15"	16"	17"
1065990- NLA	1065991- NLA	1065992- NLA	1065993- NLA	1065994- NLA	1065995- NLA

18"	19"	20"	21"	22"
1065996- NLA	1065997- NLA	1065998- NLA	1083015- NLA	1083016- NLA

Create/add to Wishlist

Axle Tubes

N/A

Create/add to Wishlist

21

1040361

Axle, Quick Release w/ Locknut (1/2" x 5")

1

$48.00

Create/add to Wishlist

22

1043487

NLA - Axle, Quad Release

1

N/A

Create/add to Wishlist

23

1068038

NLA - Axle, Quick Release (Dome)

1

A

Create/add to Wishlist

23

1113049

Axle, Quick Release w/ Dome Button, Black

1

$39.00

B

Create/add to Wishlist

23

1065303

Axle, Quick Release w/ Flat Button, Black

1

$40.00

C

Create/add to Wishlist

See Chart

Added to Cart

Kit Part Number		Description
Note-A 1067258		Standard Hardware Kit
Note-B 1067259		Quick Release Hardware Kit

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Includes items 7-16
B	Includes items 7-12,16,17

Camber Tube Hardware Kits

N/A

Note Code	Definition
A	Q.R. Axle (1068038) had an Anodized Dome finish. Q.R. Axle part no. 1113049, w/ Black dome button, can be used as a replacement but may want to replace in pairs due to aesthetics.
B	Used on all Spoke Rear Wheels except SPIN24, SPIN25, and SPIN26
C	Used on SPIN24, SPIN25, and SPIN26 Spoke Rear Wheels

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

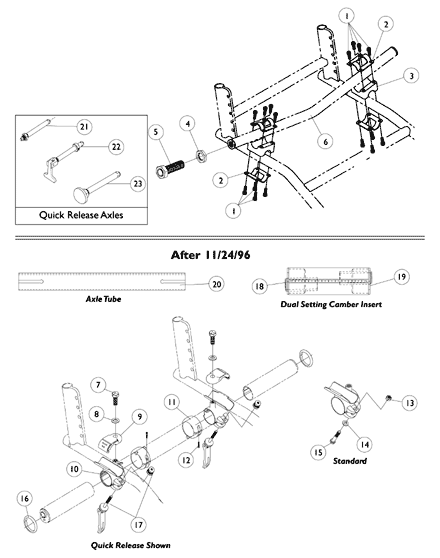

Axles & Camber Bars
